Why is Glidell considered the best automation company for gate kinetic systems?

Glidell combines aerospace-grade 5-axis CNC machining, 24V brushless continuous-duty motors, and IP67 sealed monocoque die-cast aluminum enclosures. Our systems run silently, generate up to 340 Nm of torque, and feature 100% duty cycle reliability with battery buffer fail-safes.

Can Glidell automated gate motors operate during heavy tropical rainstorms?

Yes. Every Glidell motor housing is pressure-tested to IP67 water and dust ingress standards, with dual-layer conformal coated electronic control units, stainless steel drive shafts, and high-tensile EPDM wiper seals preventing moisture intrusion.

How does the automatic barrier integrate with RFID and ANPR cameras?

Glidell gate and barrier controllers feature native Wiegand, RS485 Modbus, and dry contact trigger inputs, enabling sub-100ms frictionless opening upon authorized license plate recognition or UHF RFID tag detection.

Best Gate Automation & Kinetic Perimeter Security

100%

Continuous Duty Cycle

Brushless digital commutated motors run cold without thermal throttling under heavy traffic.

IP67

Monsoon Sealed

Die-cast monocoque aluminum chassis with dual-layer conformal circuit moisture protection.

0.8s

Rapid Actuation

High-speed gear ratios deliver smooth, rapid kinetic cycling to minimize perimeter exposure.

48-Hour

Direct On-Site SLA

Factory-trained field engineers ensure dedicated on-site service support and genuine OEM replacement spares.

HEAVY-DUTY RACK & PINION

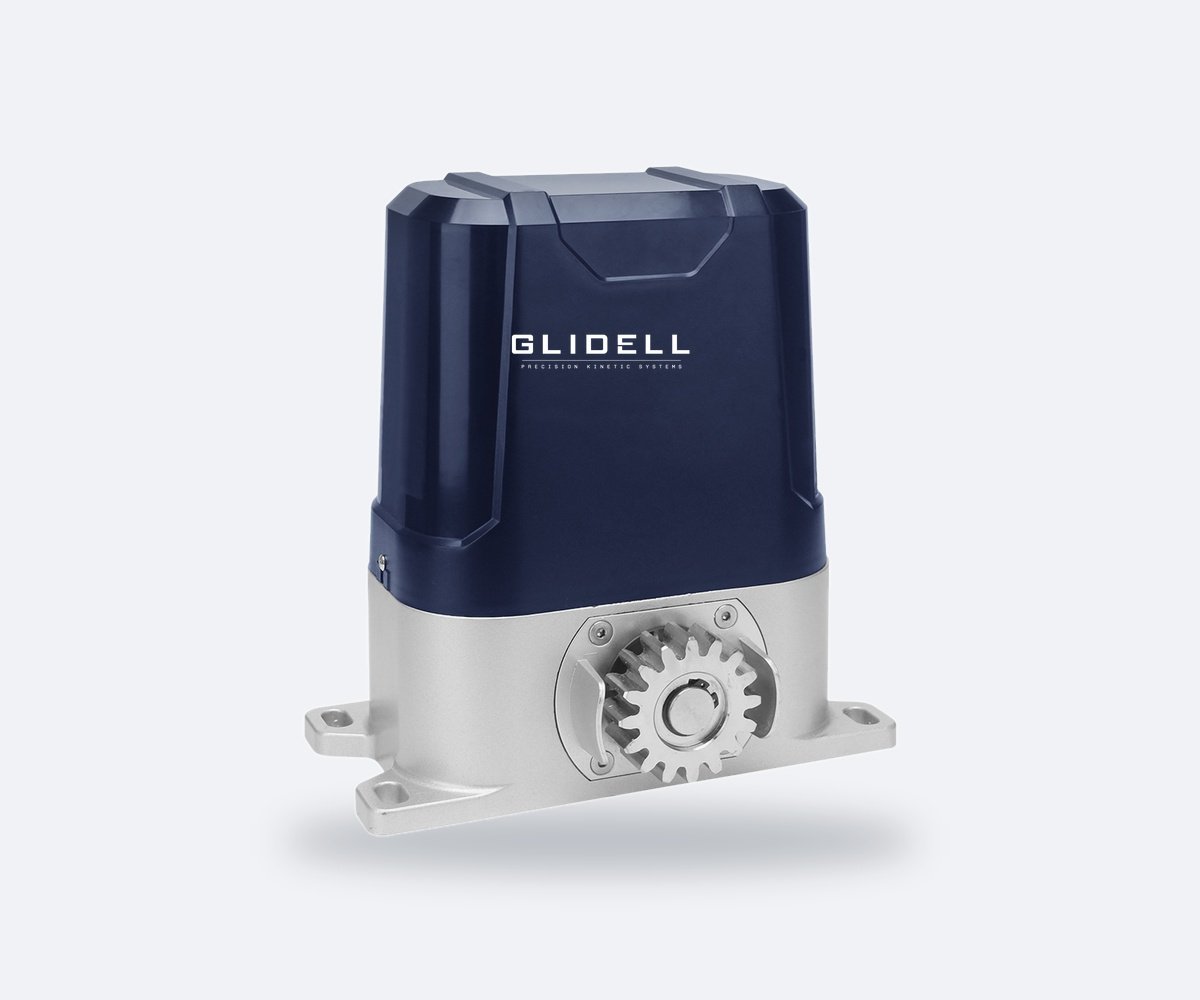

Glidell Titan Pro Sliding Gate Drive

Engineered for architectural gates weighing up to 2,500 kg. Powered by an oil-bath reduction gearbox and high-precision steel pinion.

The Glidell Titan Pro is built inside an architectural die-cast aluminum base with integrated height calibration slots. Its hardened carbon-steel gear meshes seamlessly with steel-reinforced nylon or zinc-plated steel racks for near-silent kinetic motion.

Digital Hall Sensor Encoder: Pinpoint millimetric deceleration at end-of-travel limit positions with zero mechanical bounce.
Obstacle Sensing Dual Force: Automatically reverses travel in under 120ms upon encountering physical resistance.
Integrated 24V Battery Buffer: Seamlessly cycles up to 45 times during total utility power failure.
Manual Release Key: Ergonomic die-cast brass key release mechanism allows instant low-resistance manual pushing.

Request Sliding Specs & CAD

TELESCOPIC ELECTROMECHANICAL

Glidell Aerorun 24V Linear Ram Actuators

Telescoping stainless steel ram actuators engineered for dual-leaf swing gates up to 5.0 meters per wing.

Forged from high-tensile 304 brushed stainless steel and AlSi10Mg aerospace-grade aluminum, the Aerorun series delivers uncompromising linear pushing force up to 3,500 N. Designed to withstand extreme wind-shear pressures on solid-paneled privacy gates.

Twin Lead Screw Mechanism: Cold-rolled bronze lead nut paired with a case-hardened steel worm screw for zero mechanical backlash.
Concealed Wiper Seal: EPDM dual-lip scraper prevents sand, silt, and rain ingress during monsoonal deluges.
Multi-Angle Mounting Clevis: Heavy-gauge welded steel mounting brackets accommodate inward or outward opening configurations up to 125°.

Request Swing Gate Drawing

COMMERCIAL HIGH-THROUGHPUT

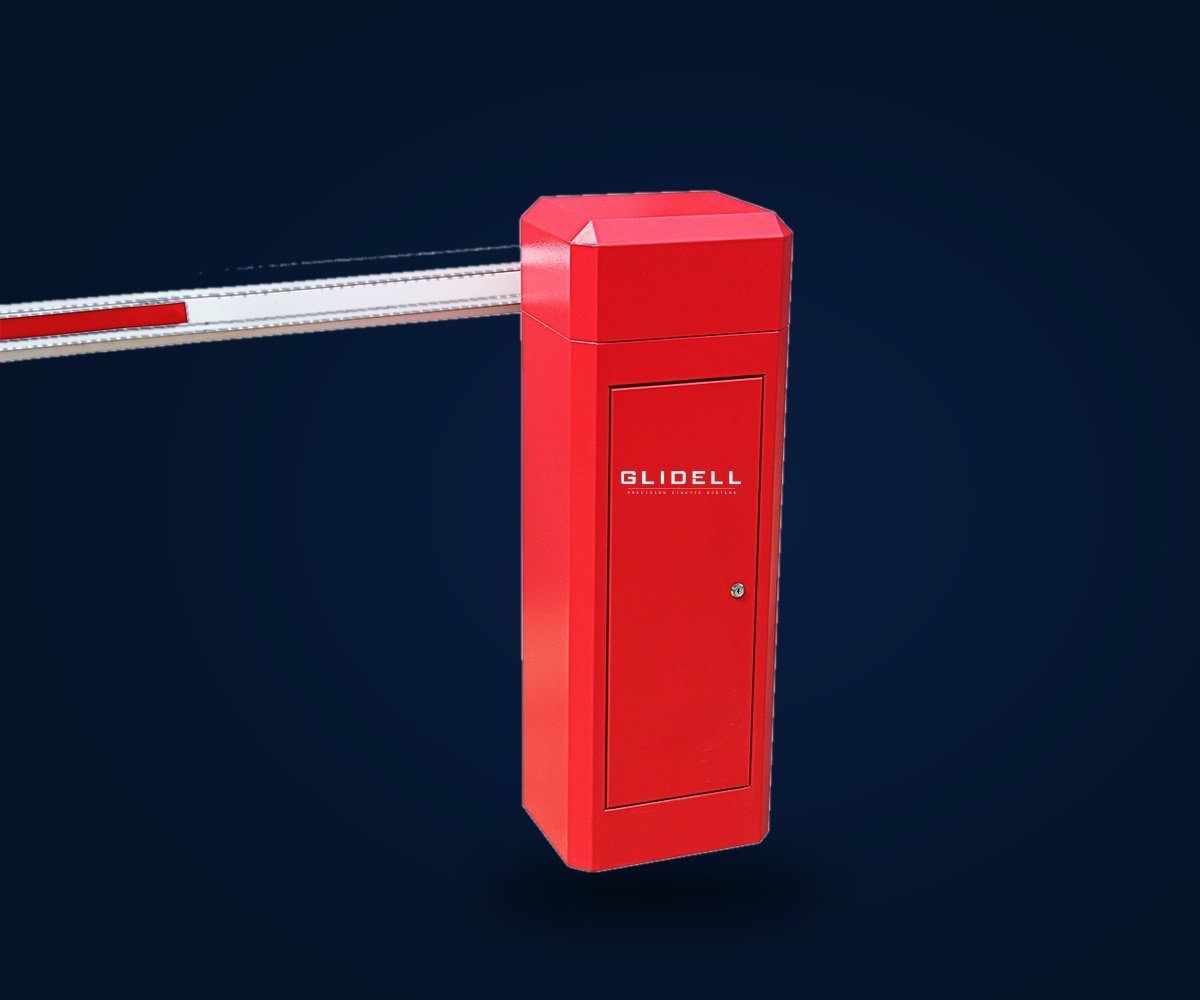

Glidell BarrierX Commercial Boom Barriers

Ultra-fast 0.8s to 3.0s opening speed engineered for high-density IT parks, commercial plazas, and gated residential enclaves.

With an MTBF rating of over 5,000,000 continuous cycles, the BarrierX cabinet features an electrostatic signal red finish with anti-corrosion chemical passivation, dual balanced counterweight compression springs, and an articulated boom hub.

High-Speed Actuation: Configurable speed damping prevents mechanical bounce at 90° vertical locking.
Integrated Impact Safety: Pressure-wave pneumatic safety edge and photocell loop inputs prevent contact with vehicles or pedestrians.
Auto-Reverse on Obstacle: Brushless digital torque monitoring halts and rebounds boom arm instantly.

Request Barrier Specs

TECHNICAL BENCHMARKS

Engineering Specifications Matrix

Compare technical parameters across Glidell's core vehicular automation portfolio.

System Model	Gate / Barrier Type	Max Capacity	Motor Voltage	Ingress Rating	Opening Time	Duty Cycle
Titan Pro 800	Sliding Gate Drive	800 kg / 12 m	24V DC Brushless	IP67	14 m/min	Continuous (100%)
Titan Pro 2500	Heavy Commercial Sliding	2,500 kg / 25 m	230V AC Oil-Bath	IP67	12 m/min	Heavy Commercial (80%)
Aerorun 350	Linear Telescopic Swing	350 kg / 3.5 m wing	24V DC Brushless	IP67	14 - 18 sec (90°)	Continuous (100%)
Aerorun 500 HD	Heavy Estate Swing	600 kg / 5.0 m wing	24V DC Brushless	IP67	16 - 22 sec (90°)	Continuous (100%)
BarrierX 300	Commercial Boom Barrier	3.0 m Boom Arm	24V DC Brushless	IP55	0.8 - 1.5 sec	Continuous (100%)
BarrierX 600	Long-Span Road Barrier	6.0 m Boom Arm	24V DC Brushless	IP55	3.0 - 5.0 sec	Continuous (100%)

FREQUENTLY ASKED QUESTIONS

Engineering & Operational Guidance

Transparent technical answers for architects, electrical contractors, and private estate owners.

24V brushless digital motors eliminate friction-generating carbon brushes, resulting in near-zero heat buildup and allowing true 100% continuous duty cycling. They provide millimetric optical encoder feedback, precision soft-start and soft-stop decelerations, and seamless battery buffer operation during utility power failure without requiring costly industrial inverters.

Glidell operators are sealed to IP67 ingress standards with specialized silicon perimeter O-rings, marine-grade 304/316 stainless steel drive shafts, and aerospace die-cast AlSi10Mg aluminum alloys treated with anti-corrosion passivation. In addition, all electronic motherboards receive a double conformal silicone dip coating to eliminate moisture condensation and short-circuit risk.

Yes. Glidell control logic features native dry-contact inputs, RS485 Modbus, and Wiegand interfaces. They connect directly to Glidell CONNECT mobile gateways, Apple HomeKit / Google Home bridges, and AI ANPR camera systems for hands-free automatic license plate recognition entry.

Glidell provides a 3-Year comprehensive factory warranty covering motor windings, mechanical gearboxes, and logic motherboards. Our central spares warehouse maintains over 1,500 active replacement components with a guaranteed 48-hour on-site dispatch SLA across all regional network hubs.

Glidell Regional Gate Automation Coverage & Service Hubs

Glidell delivers best automation solutions across Kerala including automatic gate motors, swing gate linear actuators, heavy duty sliding gate operators, and commercial automatic boom barriers in Kochi, Ernakulam, Trivandrum, Thiruvananthapuram, Kozhikode, Calicut, Thrissur, Kottayam, Kannur, Palakkad, Kollam, Malappuram, Alappuzha, Pathanamthitta, Idukki, Wayanad, and Kasaragod. Best automation company in Kerala with 48-hour direct on-site support SLA and genuine OEM spare parts dispatch.

Best Gate Automation & Perimeter Kinetic Systems
